Grain Handling Equipment


Grainland has been importing Farm-King swingaway and conventional grain augers from Canada since 1994 and since then they have proven to be an extremely durable and reliable with a reputation for quality. Our range of grain augers was expanded a few years later with the adition of Wheatheart grain augers.

Wheatheart augers are ideally suited to Australian conditions with a range of options including hydraulic drive, petrol or diesel motors, PTO drive, galvanised barrels as well as hydraulic and manual mover kits.

Our line up of equipment has continued to expand over the years with the addition of  REM Grain Vacs, Hannaford Seed Graders, GrainAirr Silo Aerators, Crop Circle Portable Bunkers as well as a full range of Silo Aeration Equipment.


Conventional Augers
Grain Auger
Farm King Logo
Wheatheart Logo

Both Wheatheart and Farm King conventional grain augers are available in 8 and 10 inch barrel sizes with lengths ranging from 36 foot to 61 foot.

Drive options include Honda or Kohler motors, PTO, and Hydraulic Drive. Manual and Hydraulic mover kits are available for all our augers. Wheatheart also have a full range galvanised barrel augers. All conventional augers sold by Grainland come with reversing gearbox, Drop Chute and Hopper.

Models Available -  8:36  8:41  8:51   /  10:36  10:41  10:51  10:61  /  13:36


View Conventional Auger Specifications   -  Download Product Manuals and Brochures

Swingaway Augers
Grain Auger
Farm King Logo
Wheatheart Logo

Grainland keep the Wheatheart and Farm King range of Swingaway grain augers. Lengths start at  50 foot and go right up to 104 foot, with barrel sizes of 10, 13 or 16 inch.

The largest auger in the range is the Farm King 16:104 swingaway auger which is capable of 7 tons per minute with a maximum lift of 77 feet (23 meters) and a reach of 36 foot (11 meters) when fully raised.

All Farm King and Wheatheart Swingaway augers come standard with reverser kit and drop chute.

Models Available - 10:60  10:70  10:80  /  13:70  13:81  13:85  13:91  13:95  /  16:104


View Swingaway Auger Specifications   -  Download Product Manuals and Brochures

Batco Belt Conveyors
Grain Auger

Batco Belt Conveyors minimise impact damage to grain and pulses and provide an alternative to conventional augers with a focus on gentle handling at a high capacity.

With a variety of models from 40 to 120 foot long in various configurations including Swingaway and Field Loaders. Drive options include PTO, Electric or Petrol Motor.

Batco Product Manuals and Brochures

Farm King Seed Cleaner
Farm King Seed Cleaner

Farm King Logo

The high capacity Farm King model 480 grain cleaner can handle up to 68 tons per hour, depending on moisture content and the amount of dockage. The two-stage screening process and large 1.2 meter diameter drum ensures the trash and fines are thoroughly removed from grain.

Grainland supply the Farm King seed cleaners with Australian made CNC punched percision screens that conform to Grain Trade Australia standards. A large range of screens to suit wheat, chickpea, sunflowers and canola are available with other sizes available on request.

Powered by a 3-horsepower motor, the Farm King 480 grain cleaner includes a removable  intake auger and a hand-operated jack for in-field operation. Fines are separated from larger screenings and are unloaded from separate chutes. A trash pan collects the screenings. 15" wheels and a full frame transport are included.

Farm King Product Manuals and Brochures

Wheatheart Drive Over Pits
Farm King Seed Cleaner

Wheatheart Portable Drive Over Pits are available in 10" and 13" Sizes with a low-profile operating deck and a minimal maintenance design. Available in hydraulic or electric drive they also feature spring assisted ramps and a rear mounted hydraulic axle for easy transport.

The 10" pit has dual 6" horizontal augers and a 10" x 7' discharge. The 13" has three 6" horizontal augers and a 13" x 7' discharge.

Drive Over Pit Manual and Parts List

Wheatheart GULP



The Wheatheart GULP is an low profile drive over hopper that transports with the 13" X Series Wheatheart swingaway augers. The GULP hopper is only 4.5" (11cm) high and is ideal for the quick unloading of B-Double, B-Triple and Road Trains without the need to unhitch.

The drive over unit hydraulically lowers and swings into position while the one-touch ramp deployment provides easy setup in minutes.

Wheatheart GULP Brochure

Wheatheart X13 Swingaway Brochure

Rodono Xtend Swingaway Hopper
Farm King Seed Cleaner
Farm King Logo

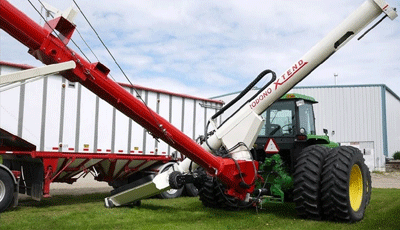

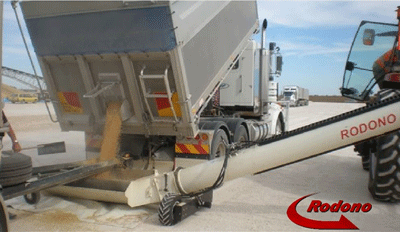

The Rodono Xtend Retracting Swingaway Hopper replaces the factory swingaway to allow the unloading of trucks without the need for a drive over pit. The Xtend is available as an option on 13" and 16" Farm King augers and can be retrofitted to most existing augers.

9' Full Stroke
20" Working Stroke
Twin Dual Flight Screws
Power Tilt Leveling
Mates to Farm King 13" & 16"

Download Xtend Brochure

Utility Augers
Farm King Seed Cleaner

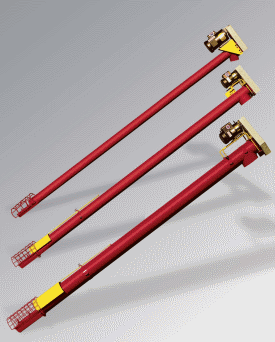

Utility Augers are available in 4, 6, 8 and 10 inch barrel diameters in various lengths with the option of electric or hydraulic drive.

Wheatheart Utility Augers are a modular auger system consisting of a basic auger section to which extensions can be added to get the required length.

The 4 inch basic auger is 11 foot long and comes with an adjustable motor mount, pulley and belt guard. Extensions are available in 5 and 10 foot lengths.

The 6, 8 and 10 inch models come with a 16 foot basic auger complete with motor mount, pulley and belt guard. Extensions are also available in 5 foot and 10 foot lengths.

Utility Augers are suitable for permanent and semi-permanent grain handling installations.

Utility Auger Product Manuals and Brochures

REM Grain Vacuums
Farm King Seed Cleaner

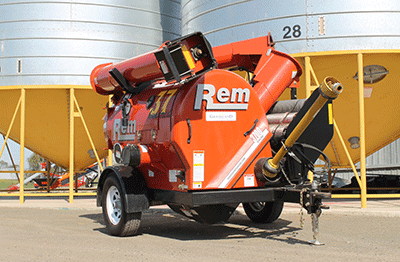

Manufactured in Canada the Rem Grain Vacuums have established the benchmark for excellence in grain handling.

The Rem Grain VAC eliminates dangerous open augers and makes empting bunkers and flat bottom silos easy.

The REM 3700 has a capacity of approximately 215 tonnes per hour with 7.5 meters of hose and the REM 2700  is capable of 57 tonnes per hour with 7.5 meters of hose.

Grainland have REM Grain Vacs for hire as well as outright sale.


REM Grain Vac Product Manuals and Brochures

Crop Circle Portable Grain Bunkers
Farm King Seed Cleaner
Farm King Logo

Crop Circle portable grain bunkers are easy to set up, take down and re-use. No special equipment needed to fill (auger or grain vacuum).

Capacities range from 200 to 2000 tones. Corrugated 22 gauge galvanised steel panels are used to provide a strong, reusable system for the temporary grain storage.

A choice of 300 or 600 GSM Australian made tarps provide excellent protection from the weather and wildlife. Keep harvesting even when bins and silos are full with the help of the Crop Circle

Crop Circles are available in 29,40,51,62,7077,90 and 100 foot diameters in either 2 foot or 4 foot high ring heights.


Crop Circle Brochure and Price List



Size Capacity Tons Cost Per Ton Including
300 GSM Australian Tarp
29 foot dia x 2 foot high 63 $69.08
29 foot dia x 4 foot high 90 $64.87
40 foot dia x 2 foot high 136 $47.51
40 foot dia x 4 foot high 185 $45.35
51 foot dia x 2 foot high 270 $27.90
51 foot dia x 4 foot high 352 $29.43
62 foot dia x 2 foot high 455 $20.58
62 foot dia x 4 foot high 575 $22.18
70 foot dia x 2 foot high 698 $15.41
70 foot dia x 4 foot high 859 $17.30
77 foot dia x 2 foot high 829 $14.39
77 foot dia x 4 foot high 1012 $16.11
90 foot dia x 2 foot high 1424 $10.47
90 foot dia x 4 foot high 1694 $11.57
105 foot dia x 2 foot high 2195 $8.28
105 foot dia x 2 foot high 2561 $9.17
