Swingaway Augers


Grainland began importing Farm King augers from Canada in 1994, a few years later we began to import Wheatheart augers as well. Both the Farm King and Wheatheart range of swingaway augers have proven to be extremely reliable, durable and well suited to Australian conditions. All our augers are assembled on site here in Moree.

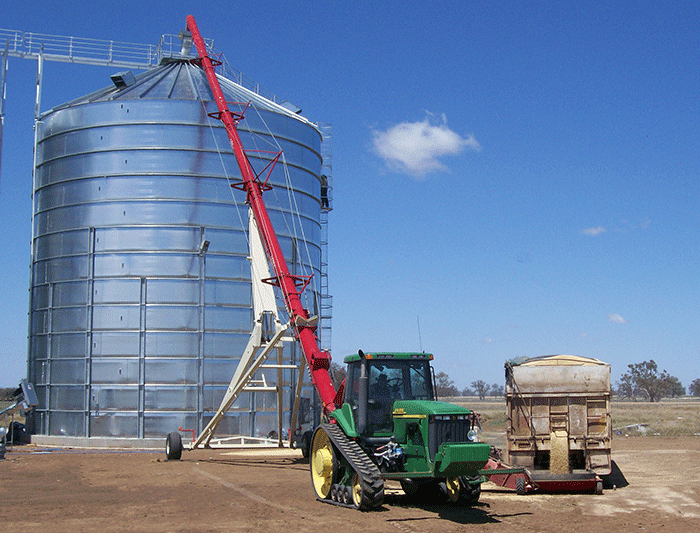

Farm King 16104





Farm King Augers

Swingaway Augers


Farm King has been manufacturing swingaway augers for more than four decades. The same principles used back then still apply today when choosing materials that go into every auger, grade A steel and functional design. Models range in lengths of 60 to 104 feet accompanied by 10, 13 and 16-inch tube sizes. A patented bridge –like support system allows the auger tubing and flighting to remain stable at all times including raising and lower of the auger.

The hydraulic scissor lift resurrects the auger in virtually no time at all. When the spout is in the desired location, a safety hydraulic ball valve can be adjusted to ensure the augers stays when and where you want even in unpredictable weather. The recommended horsepower for peak operation ranges from 40-175 depending on auger size.

Farm King Swingaway Auger Brochure

Farm King Augers

Dimension A Raised Dimension A Lowered Dimension B Raised Dimension B Lowered Tube Thickness Flighting Thickness HP Required
10:60
43' 8" 11' 3" 22' 3" 30' 3" 12 Gauge
(2.66mm)
7  Gauge
(4.55mm)
48 hp
10:70 48' 12' 6" 27' 10" 35' 8" 12 Gauge
(2.66mm)
7 Gauge
(4.55mm)
55 hp
10:80 55' 13' 6" 34' 9" 45' 7" 12 Gauge
(2.66mm)
7 Gauge
(4.55mm)
65 hp
13:70 50' 13' 7" 27' 5" 36' 11" 12 Gauge
(2.66mm)
1/4"
(6.35mm)
80 hp
13:85 59' 6" 13' 8" 31' 10" 45' 4": 12 Gauge
(2.66mm)
1/4"
(6.35mm)
90 hp
13:95 66' 4" 14' 8" 38' 9" 55' 4" 12 Gauge
(2.66mm)
1/4"
(6.35mm)
100 hp
16:104 77' 4" 12' 5" 36' 1" 57' 8" 10 Gauge
(3.42mm)
1/4"
(6.35mm)
175 hp

Wheatheart

SA Series Swingaway

 Equipped with heavy-duty constant velocity (CV) PTO shaft to eliminate vibrations for smoother running and less stress on the drive train. The Wheatheart SA Series also feature a flared lower tube for improved feeding with a replaceable 14" flight section.

A Spring-loaded safety discharge door on intake hopper guards against main auger overloading. The SA Series haveWear Edge flighting at critical grain transfer points.

Wheatheart Swingaway Auger Brochure

Wheatheart Auger

Dimension A Raised Dimension A Lowered Dimension B Raised Dimension B Lowered Tube Thickness Flighting Thickness HP Required
10:61 41' 10" 11' 23' 5" 29' 7" 14 Gauge 7 Gauge
(4.55mm)
60 hp
10:71 47' 11' 26' 10" 33' 8" 14 Gauge 7 Gauge
(4.55mm)
65 hp
10:81 52' 6" 11' 6" 29' 2" 39' 4" 14 Gauge 7 Gauge
(4.55mm)
85 hp
13:71 49' 9' 9" 26' 9" 35' 9" 12 Gauge
(2.66mm)
7 Gauge
(4.55mm)
100 hp
13:81 53' 9" 9' 3" 29' 1" 42' 12 Gauge
(2.66mm)
7 Gauge
(4.55mm)
120 hp
13:91 61' 3" 9' 11" 30' 1" 45' 2" 12 Gauge
(2.66mm)
7 Gauge
(4.55mm)
140 hp
